GRML金屬磁力無軸封泵
GRML金屬磁力無軸封泵
ISO 2858 Magenetic drive with FCD 450 casing shell thermoplastic resin pump(7.5HP~25HP)

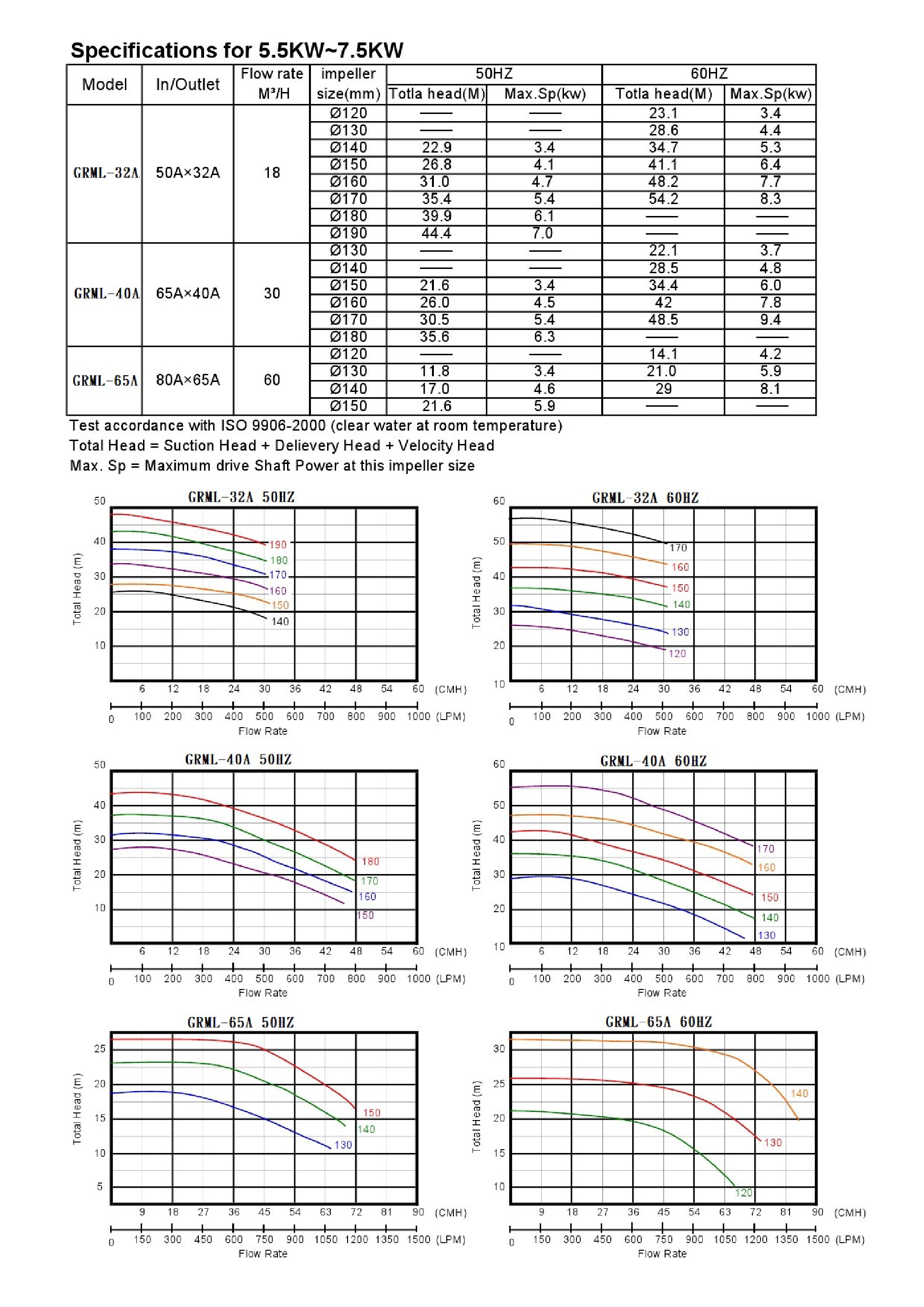

| Model | In/Outlet | Flow rate M³/H |
| GRML-32A | 50A*32A | 18 |
| GRML-40A | 65A*40A | 30 |
| GRML-65A | 80A*65A | 60 |
| 構造及材料表 | ||
| 形式 | LHM-06~25P | LHM-06~25F |
| 零件名稱 | 材質 | 材質 |
| 1.前蓋 | 強化玻璃纖維PP | 強化玻璃纖維PVDF |
| 2.主軸 | 陶瓷 | 陶瓷 |
| 3.軸承 | 鐵氟龍 | 鐵氟龍 |
| 4.葉輪 | 強化玻璃纖維PP | 強化玻璃纖維PVDF |
| 5.內磁 | 氧化鐵 | 氧化鐵 |
| 6.後蓋 | 強化玻璃纖維PP | 強化玻璃纖維PVDF |
| 7.外磁 | 氧化鐵 | 氧化鐵 |
| 8.O型環 | VITON | VITON |
| Model | In/Outlet | Flow rate M³/H |
| GRML-32B | 50A*32A | 18 |
| GRML-40B | 65A*40A | 30 |
| GRML-65B | 80A*65A | 60 |
| Model | Motor | |
| FIG.A with base |
GRML B32 (GRML B32J) |
5.5~7.5KW |
| 11~15KW | ||
| 18.5KW | ||
| GRML B40 (GRML B40J) |
5.5~7.5KW | |
| 11~15KW | ||
| 18.5KW | ||
| GRML B65 (GRML B65J) |
5.5~7.5KW | |
| 11~15KW | ||
| 18.5KW | ||
| FIG.A without base |
GRML 32 (GRML 32J) |
5.5~7.5KW |
| 11~15KW | ||
| 18.5KW | ||
| GRML 40 (GRML 40J) |
5.5~7.5KW | |
| 11~15KW | ||
| 18.5KW | ||
| GRML 65 (GRML 65J) |
5.5~7.5KW | |
| 11~15KW | ||
| 18.5KW | ||
| 規格性能表 | ||||||||||||||
| 型式 |
口徑 | 螺牙 | 最大流量 Max.Capacity L/min |
最大揚程 Max.Head m |
溫度範圍 | 電流 | 比重 | 馬達 | 極數 | 重量 KG |
||||
| 吸入 | 吐出 | Inlet /Outlet | Union | 輸出 | HP | 相數 | ||||||||
| LHM-06 | 20mm | 20mm | PF3/4 inch | 20mm | 37/40 | 4/5.8 | 0~80°C | 0.35/0.35 | 1.1 | 65W | 1/12 | 1 or 3 | 2 | 4 |
| LHM-09 | 26mm | 26mm | PF 1 inch | 20mm | 72/95 | 7/10 | 0~80°C | 0.96/0.92 | 1.2 | 90W | 1/8 | 1 or 3 | 2 | 6 |
| LHM-18 | 26mm | 26mm | PF 1 inch | 20mm | 72/95 | 7/10 | 0~80°C | 0.96/0.92 | 1.1 | 180W | 1/4 | 1 or 3 | 2 | 6 |
| LHM-25 | 26mm | 26mm | PF 1 inch | 20mm | 118/119 | 12/12 | 0~80°C | 1.4/1.3 | 1.2 | 260W | 1/3 | 1 or 3 | 2 | 7 |
